Chassis:

• FIAT low-frame chassis Lightweight, 3500 kg

Engine:

• 2,2 l - 140 Multijet: FIAT Ducato 2,2 l - 140 Multijet
• Euro 6d-FINAL
• 184 cm3
• 103 kW / 140 hp
• Start/stop technology and ECO package

Technical data:

• Turning radius: 14.43 m
• Interior headroom: 2054 mm
• Unladen weight: 3042 kg
• Mass in roadworthiness: 3078 kg
• Payload: 422 kg
• Towing capacity, braked: 2000 kg
• Body wall thickness (floor/roof/walls): 42/34/34 mm
• Number of beds / optional beds: 2 / 2
• Fuel tank: 75 l
• AdBlue tank: 19 l
• Waste water tank: 96 l
• Fresh water tank: 10 / 100 l
• Outside shower: driver's side
• External socket: passenger side
• Roof-mounted air-conditioning unit: middle/rear
• TV bracket: left of entrance
• Fresh water tank: bench seat/seat belt anchorage
• External gas outlet: passenger side
• Additional power sockets, 2 x 12 V
• Additional power sockets, 2 x 230 V
• Gas cylinder cabinet: 2 x 11 kg
• Number of power sockets (12 V / 230 V): 3 / 8
• Charger: 25 A
• Charge amplifier: 25 A
• Cabinet door (internal dimensions: width x height)1.000 x 510 / 1.000 x 510 mm

Wheels:

• Wheels: 16 inch, original FIAT wheels.
• Wheelbase: 4035 mm
• Tyre size: 225 / 75 R 16 CP

Base vehicle: a FIAT car:

• ABS anti-lock braking system
• Electrically adjustable and heated wing mirrors
• Front mirrors, extended
• On-board computer
• ESP including ASR, Hill Holder and Intelligent Traction Control
• Driver and passenger airbags
• Electrically operated windows
• Tempomat
• Central locking with remote control
• Electronic immobiliser
• Radio antenna integrated in the roof area
• Radio receiver kit with speakers
• Tyre pressure monitoring system
• Tyre repair kit
• Charge amplifier 25 A
• Front mud flaps
• Front bumper painted body colour
• Danger triangle and first aid kit
• Manual air conditioning with in-cab pollen filter
• Steering wheel and gear lever in leather
• FIAT Safety package (includes emergency braking, lane departure warning, rain sensor, traffic sign recognition and auto-dimming headlights)

Bodywork:

• Fibreglass floors with XPS thermal insulation
• GRP roof for optimal hail protection
• THULE OMNISTOR awning, width 400 cm, retractable depth 250 cm
• Entrance door, extra wide, with double lock, window, bin and compartments
• Internal dimensions: 605 x 1 740 mm
• Fly screens for residential entrance doors
• Rankena
• Double electrically operated entrance steps
• LED entrance light
• Rear lights with dynamic indicator
• Gas cylinder pull-out shelf for 2 x 11 kg cylinders
• Aluminium rails made of aluminium
• Winter vents in the seat area, lockers and beds

BagaCabinets and lockers:

• Storage rooms, insulated and heated, with solid flooring

Residential area:

• Coat hooks in the entrance area
• Wall cabinets with lots of storage space
• Wardrobe with internal lighting
• Smooth transition from the cab to the living area

Furniture finishing:

• Uni black / walnut

Kitchen:

• Refrigerator (AES) DOMETIC, 133 litres, double, absorption technology
• 3-burner Gas-on-Glass hob with electric ignition
• Stainless steel sink
• Kitchen with spacious, fully retractable drawers with soft-closing mechanism
• Cutlery insert
• Kitchen worktop
• Spice racks
• Kitchen electrical socket

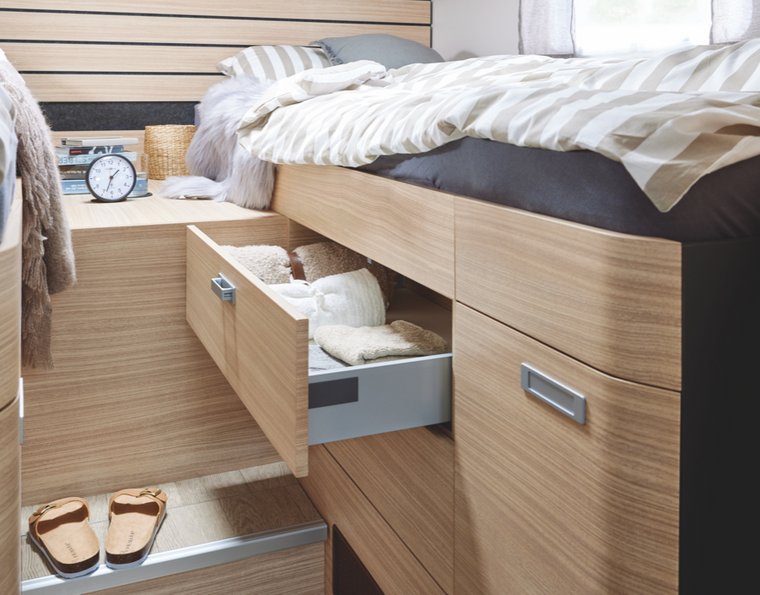

Sleeping area:

• Double bed
• Cold foam mattress(es)
• GOODSIDE® shelving frame system
• All wall cabinets above the bed
• Bed headboard and shelves
• Walls
• Light switch in sleeping area
• Bed size, single beds (length x width): 1.920 x 780; 1.960 x 780 mm
• Bed size, convertible seating bed (length x width): 2.120 x 1.000 / 940 mm
• Bed size, cab bed conversion (length x width): 1.600 x 740 mm

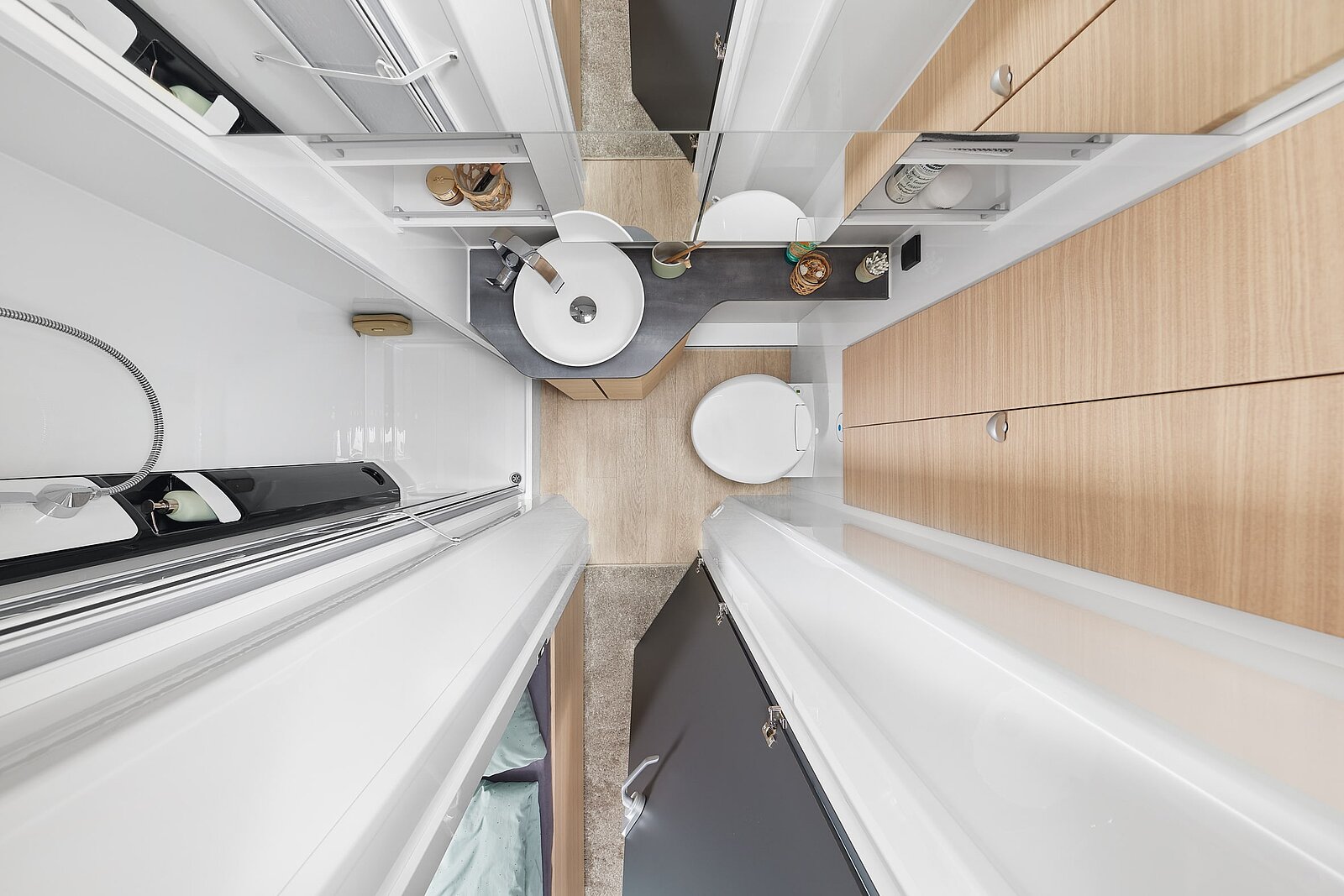

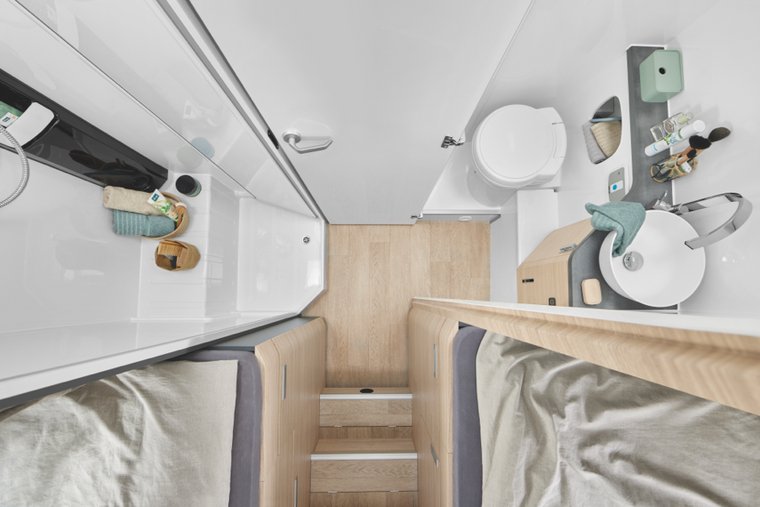

WC:

• Rear washbasin with separate shower cubicle, design depending on model
• Shower screen
• Shower column with shower equipment and compartments
• Swivel toilet THETFORD
• Washing line, retractable
• Mirror cabinet

LED lighting:

• Reading lights in the sleeping area
• Reading lights in the seating area
• Spotlight for the soul
• Ambient lighting, design depends on model
• Ceiling lighting in living and sleeping areas
• Work surface lighting in the kitchen
• Trunk lighting

Water/gas/electricity:

• Wastewater tank, 96 l, insulated and heated
• Fresh water tank, 10/100 litres, frost protected
• Frost-protected unit on a floor pedestal
• Gas regulator with overpressure protection (DIN EN 12 864) and hose line
• Gas control taps in kitchen cupboards
• Power supply, 12 V / 230 V
• Electrical sockets in the garage, 12 V / 230 V
• Double submersible pump
• Smoke alarm
• Pre-connected reversing camera
• Pre-wired for a solar energy system
• Additional power sockets, 2 x 12 V / 2 x 230 V
• AGM residential battery, 12 V / 95 Ah

Heating/air conditioning:

• TRUMA Combi 6 heating system including 10 l hot water system and frost control valve
• LCD control panel TRUMA Combi CP Plus
• Hot water supply in kitchen and washroom
• Pre-connecting a roof-mounted air conditioner

Smart homes:

• HOBBY CONNECT, control of on-board technology via the HOBBY control panel and Bluetooth via the app

Multmedia

• Speaker in seating area, x 2
• PIONEER navigation system and Wi-Fi media centre with touchscreen, reversing camera, parking database, Apple CarPlay and Android Auto
• Pre-connected satellite system
• TV connector including 12 V / 230 V and antenna socket
