Chassis/safety:

• Jockey wheel
• Attachment cover
• One-key locking system
• Integrated third brake light
• Rear fog lamp
• Wheel shock absorbers
• High-resistance supports
• Licensed for speeds up to 100 km/h
• Stabiliser hook KNOTT
• Automatically adjustable overrun brake KNOTT ANS

Wheels:

• Steel rims, silver, with wheel caps

Technical data

• Number of axles: 2
• Tyre size: 155 / 80 R 13 XL
• Overall length: 8.031 mm
• Body length: 6,868 mm
• Overall width / internal width: 2.500 / 2.367 mm
• Overall height / Internal headroom: 2.629 / 1.950 mm
• Maximum technically permissible laden mass: 1,900 kg
• Mass in running order: 1.649 kg
• Payload: 251 kg
• Technically possible payload increase up to: 2,200 kg
• Payload at maximum payload: 543 kg
• Technically possible load reduction up to: 1.800 kg
• Body wall thickness (floor/roof/walls): 39/31/31 mm
• Awnings perimeter: 10.620 mm
• Edging (straight edge): 4.872
• Autonomy package: front right
• Roof-mounted air conditioning: rear
• Fresh water tank; optional connection to city water: rear right
• External gas outlet: right rear
• Socket for external awning: rear right
• Locker door MAXI, THETFORD with central locking, 1000 x 300 mm, lockable: front right
• Number of 230 V power sockets (single/double): 5/1

Windows:

• Windows: folding, opening, double-glazed and tinted
• Front window with fully integrated pleated blackout blind and insect screen
• Combination cartridge with pleated blinds and insect screen for all windows (except washroom)
• Roof window DOMETIC SEITZ, Midi-Heki 700 x 500 mm, with pleated blinds and insect screen in living area
• Skylight DOMETIC SEITZ, Mini-Heki 400 x 400 mm, with pleated blinds and insect screen in the bedroom
• Skylight DOMETIC SEITZ, Micro-Heki 280 x 280 mm, with pleated blinds and fly screen in the washroom

Bodywork:

• Winter vents in the lounge area, cupboards and beds
• Single entrance door, extra wide, with three-point locking, window, waste bin, compartments and pleated insect screen in the door frame, design depending on model
• Rankena
• Entrance step
• Integrated awning rail
• Front/rear awning rail rain deflector with water drainage system
• Wheel arches, thermally insulated
• Wheel arch protector with rubber edge for draughts
• LED awning lighting
• Gas cabinet for 2 x 11 kg bottles
• Storage room door MAXI, THETFORD with central locking, 1000 x 300 mm, lockable

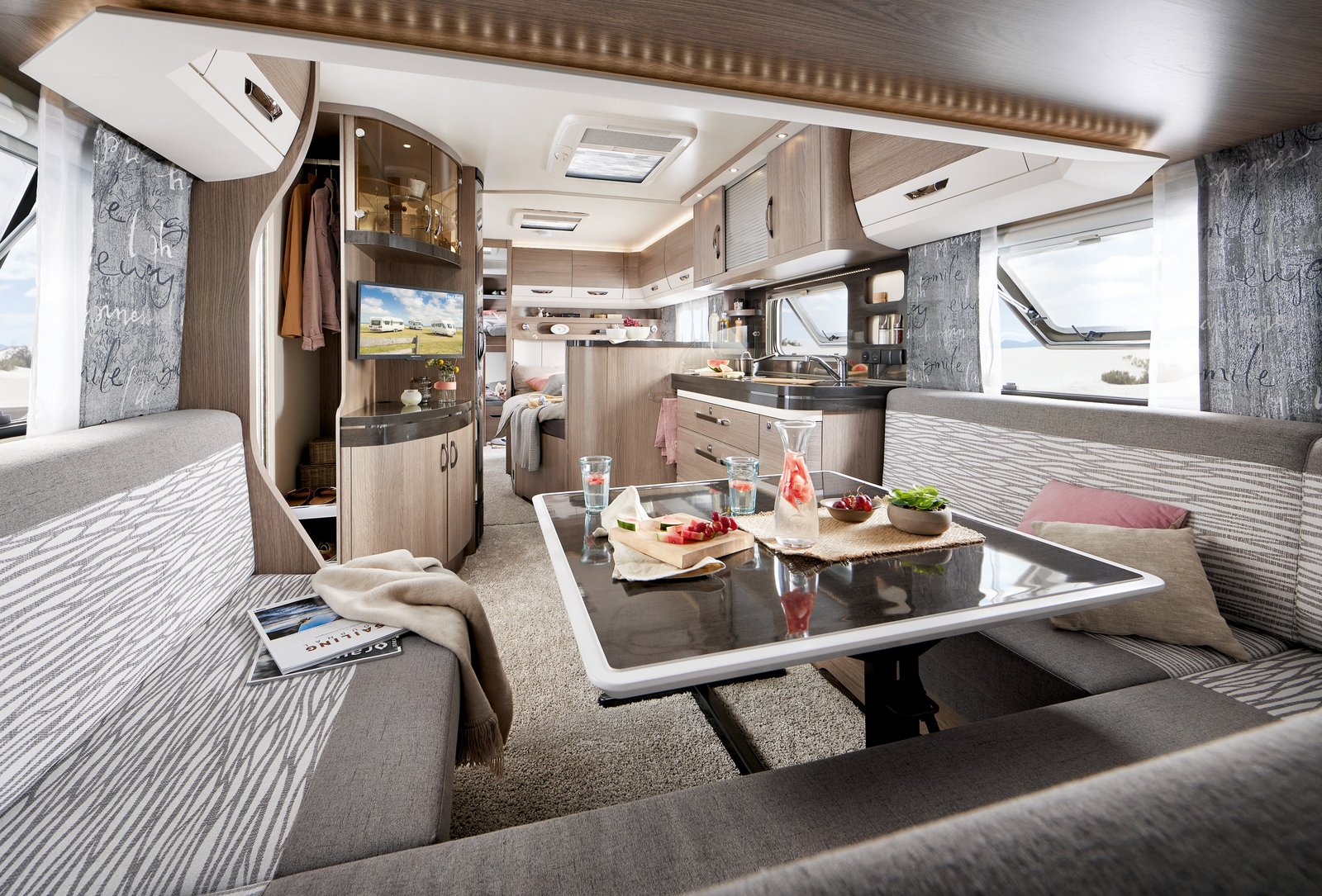

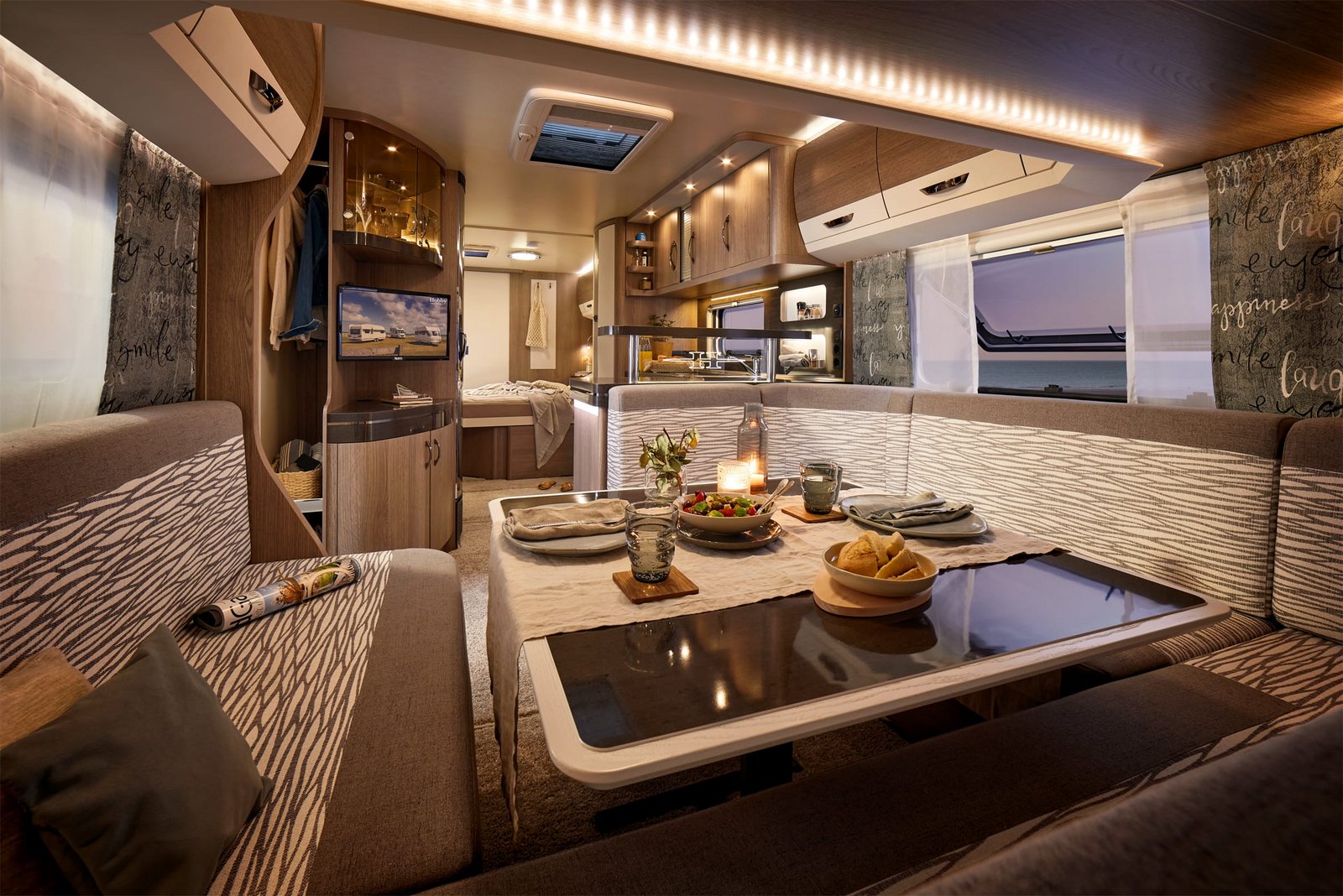

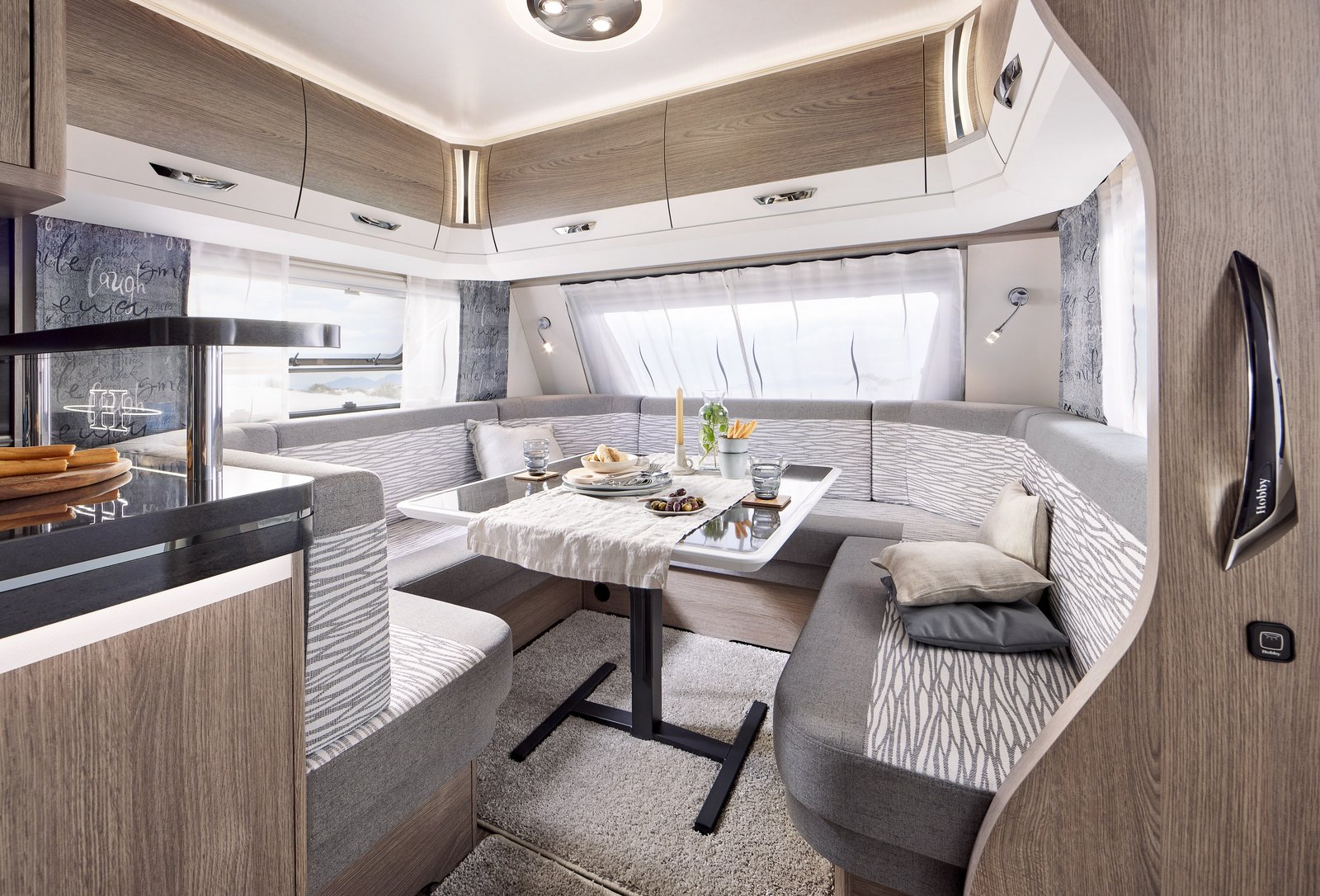

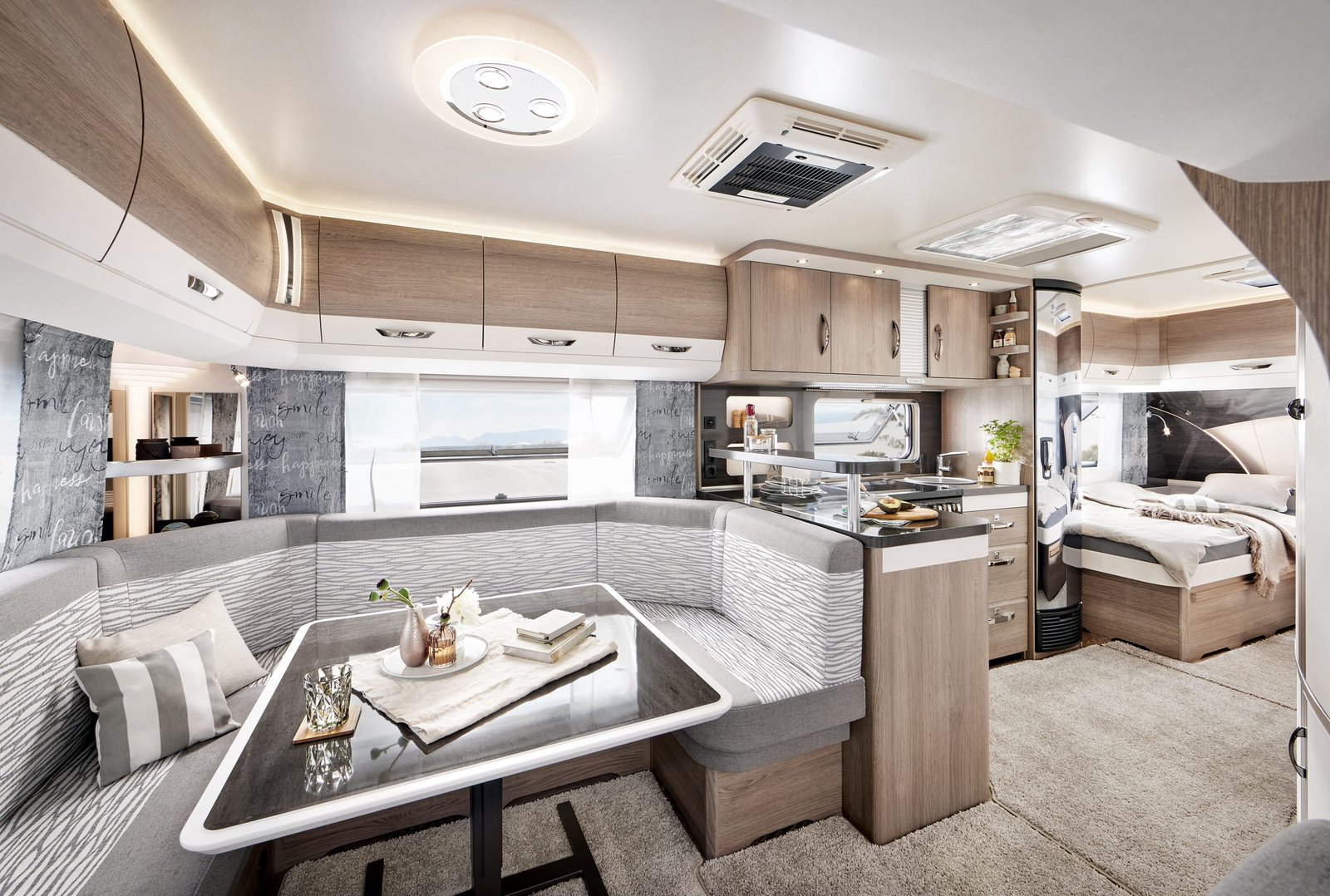

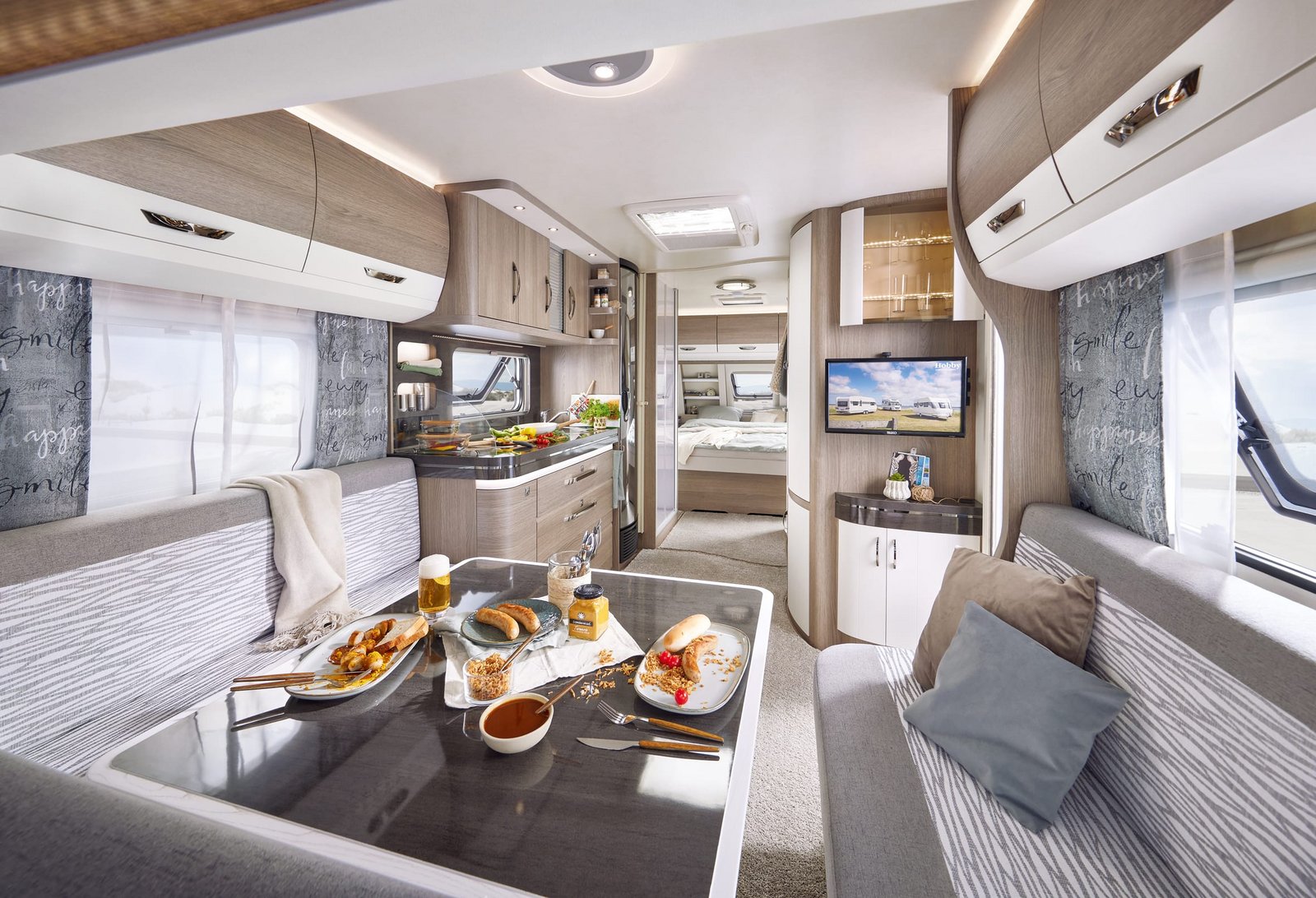

Residential area:

• Single column lifting table
• Cupboard with internal lighting
• Wall cabinets with plenty of storage space and soft-closing doors
• Compartment under the seat

Furniture finishing:

• "Visby oak / white gloss

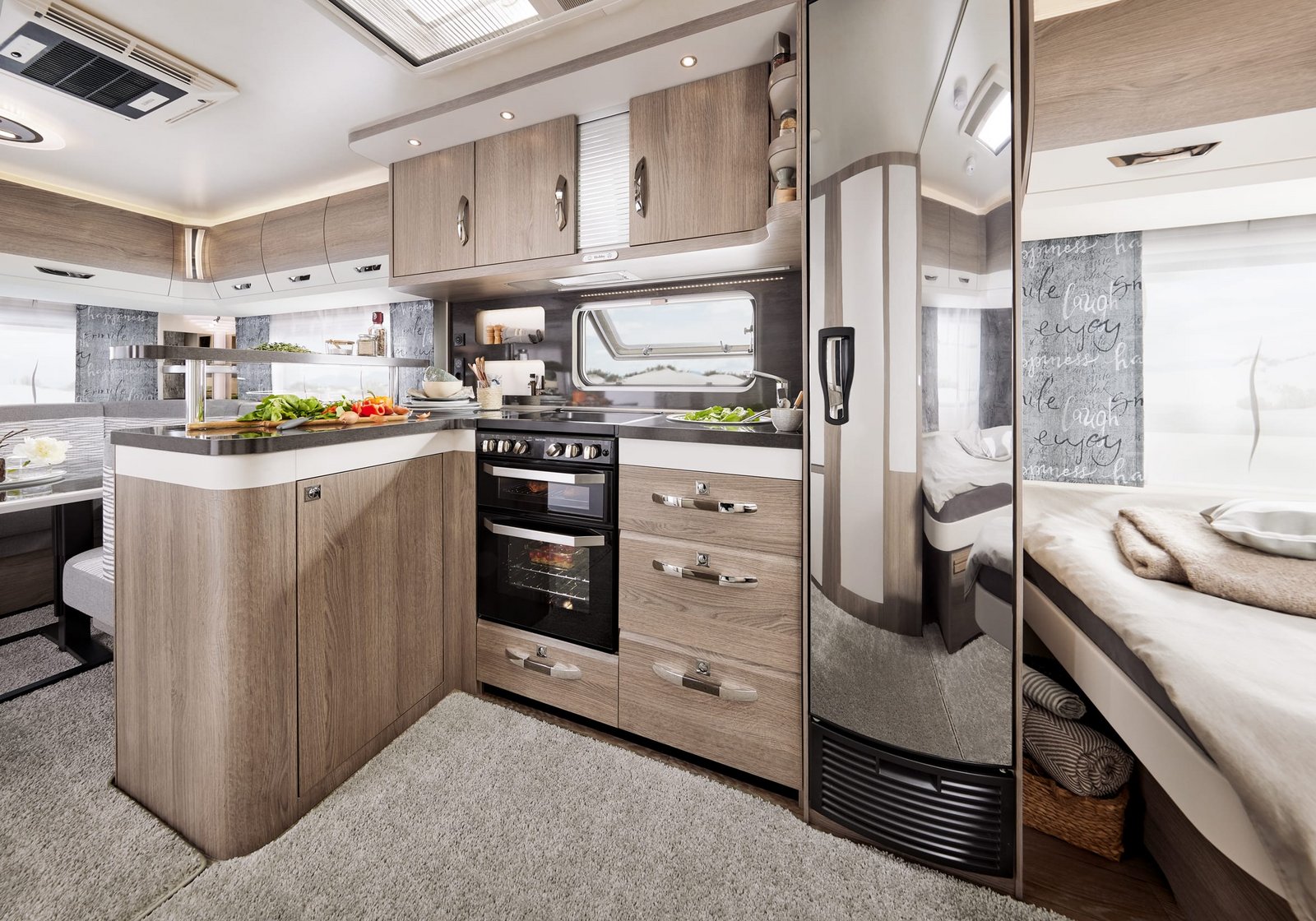

Kitchen:

• Refrigerator DOMETIC, 133 l, 10 series, including 12 l freezer compartment, with double hinges, absorption technology
• Stainless steel cooker and sink with 3-burner hob, electric ignition and broken glass lid
• Corner base cabinet with swivel pull-out lid
• Spice racks
• Large drawers, fully extendable, with soft-closing and sliding locks
• Cutlery insert
• Towel holder
• Kitchen wallpaper with integrated blackout blinds and insect screen
• Kitchen lighting, 230 V power sockets and USB charging socket
• Kitchen lighting and separate electrical sockets

Sleeping area:

• Single beds
• Spring mattresses for single, double and king-size beds
• Mechanical bed lift for single beds with slatted frames
• Number of beds (adults/children): 4
• Bed size, single beds (length x width): 2 x 1.970 x 890 mm
• Bed size, seating position Bed partition (length x width): 2.233 x 2.050 / 1.600 mm

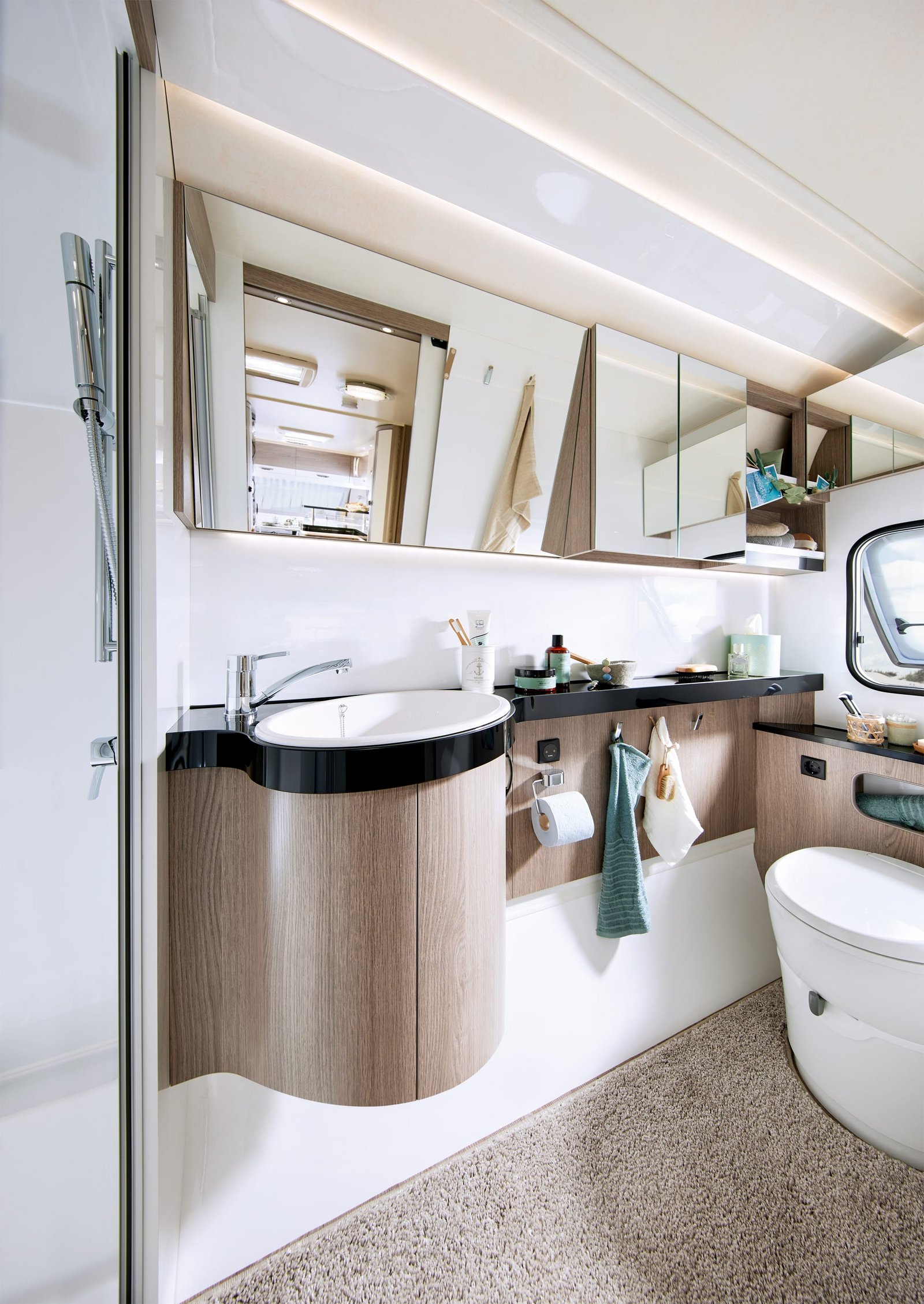

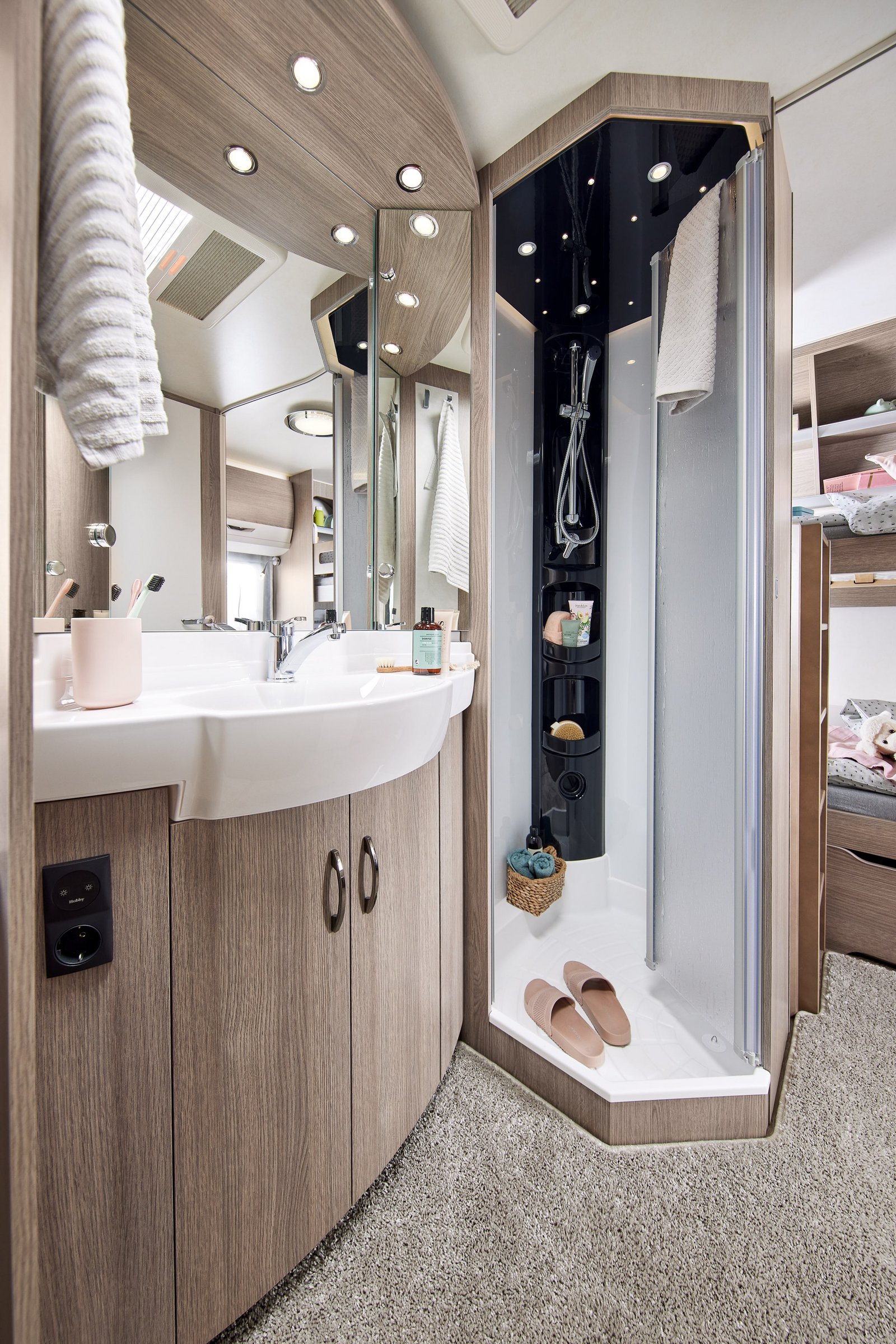

WC:

• Compact washbasin with washbasin and toilet, design depending on model
• Cassette toilet THETFORD

LED lighting:

• Ambient lighting, design depends on model
• Corner shelves with lighting in the living area, design depending on model
• Colour-changing reading lights, adjustable in three degrees, in the seating area
• Reading lights in the sleeping area

Water/gas/electricity:

• Wastewater tank, 23,5 l, rolling
• Fresh water tank, 47 litres
• Submersible pump
• Gas regulator with overpressure protection (DIN EN 12 864) and hose line
• Gas control taps in kitchen cupboards
• Control panel for lighting system and tank display
• Light switch for children
• Electronically controlled 12 V / 350 VA power supply
• Earthing circuit breaker
• External awning socket including 230 V output, satellite/TV connection
• Antenna socket with coaxial cable in a residential area
• JAEGER passenger vehicle connector, 13 poles
• Smoke alarm

Heating and air conditioning:

• TRUMA Combi 6 heating system including 10 l hot water system and frost control valve

Smart home:

• HOBBY CONNECT, control of on-board technology via the Hobby control panel and Bluetooth via an app
