• Standard chassis: Fiat Ducato
• Front-wheel drive
• kW (hp): 103 (140)
• Tyre size: 215/70 R15 C
• Length / width / height (cm): 636 / 208 / 260
• Roof type: sleeping roof
• Standing height in living area (cm): 190
• Wheelbase (mm): 4035
• Mass in running order (-/+ 5 %) (kg)*: 2990 (2841 - 3140)*
• Manufacturer's specified mass of optional equipment (kg)*: 171
• Maximum technically permissible laden mass (kg)*: 3500
• Technically permissible maximum towable mass (kg)*: 3000
• Number of seats permitted (including the driver's)*: 4
• Bed dimensions: length x width (cm): 195 x 119 / 192 x 77
• Bed dimensions: sleeping roof L x W (cm): 209 x 143
• 2 - 4 beds
• Refrigerator capacity (freezer compartment) (l): 90 (6.5)
• Standard heating: gas-fired warm air, 6 kW
• Gas cylinder storage (filling weight): 2x 11 kg1x 6 kg
• Total fresh water tank capacity (l): 110
• Fresh water tank filling level (l): 20
• Hot water tank (l): gas boiler 11 l
• Waste water tank (l): 95
• Electrical sockets: 230 V / 12 V / USB 5 / 1 / 6

Chassis/weight options

• Fiat Ducato 3,5 t - 2.2 MultiJet - 103 KW/140 HP - Euro 6E

Base

• External colour: white
• 6G manual gearbox
• 19 l AdBlue tank
• Electrically adjustable and heated exterior mirrors
• Electric immobiliser
• Daytime running lights integrated in the headlamps
• 15" steel wheels
• M+S all-season tyres (with snowflake symbol)
• Toolkit
• Digital display with on-board computer
• Electric cab windows
• Driver and passenger airbags
• Cup holder in the centre of the dashboard
• Seat belt warning device "Seat belt not fastened"
• Passenger-side storage compartment with refrigerated compartment lid for a 1.5 l bottle
• Coaxial steering adjustment
• Breakdown kit (air compressor with extra valve)
• DAB radio and pre-installed audio equipment, including a speaker in the rear
• Water in diesel fuel sensor
• Power steering
• Seat base plates
• "Start-Stop-System, including a smart generator
• Door storage compartments with integrated 1.5 l bottle holder
• Central locking with internal control and remote control
• Outdoor temperature display
• ESC with HBA, ABS, ASR, LAC, MSR, Hill Start Assist, Traction Assist+, Crosswind Assist, Trailer Stability Control and Post-Collision Assist

Body

• Electric boarding step
• Rear door opening extends
• Black gutter over sliding door with integrated LED lighting
• Optimal thermal and noise insulation thanks to 16 mm closed-pore polyethylene foam in the wall area and 23 mm XPS insulation in the roof area
• Insulated floors
• Felt optics inside the cab
• Living area windows with dark tint
• 40 x 40 cm skylight in bathroom
• Skylight for bedroom, 40 x 40 cm
• Living room skylight, 70 x 50 cm
• Insulated windows with aluminium frames

Equipment

• Cab seats, swivel, with armrests, height and tilt adjustable
• Cabin seats, armrests and seat bench upholstered in living area fabric
• Mosquito nets, pleated sliding door blinds
• Pedestal with two storage compartments
• Gas cylinder compartment for 2 gas cylinders
• Retractable bed lift with load compartment partition
• Folding table with the possibility of enlargement
• Pleated blackout blinds for front and side cab windows
• "Travel Lounge bench with adjustable tilt
• Bedroom comfort system with bed frame and cold foam mattress(es)
• Mirror cabinet with magnetic vanity mirror
• Convenient sliding locks with genuine leather loops on flaps and drawers
• Fixing rails with 4 adjustable eyelets
• Wall panel with multifunctional rail system at the seating group and kitchen for multiple use

Living room and bedroom + lighting

• Bedroom side panels with a premium lamination of heat and sound absorbing fabric
• LED lighting, adjustable by touch control
• LED reading lights with touch control (residential area)

Kitchen

• Deep drawers with Premium pull-out drawers, including self-closing
• Large 2-piece cutlery insert
• 90 l compressor fridge (12 V or 230 V) with freezer with excellent refrigeration performance and quiet night mode
• Extendable kitchen worktop
• Stove and sink combination with glass lid (2-burner gas hob) and high-quality single-lever mixer

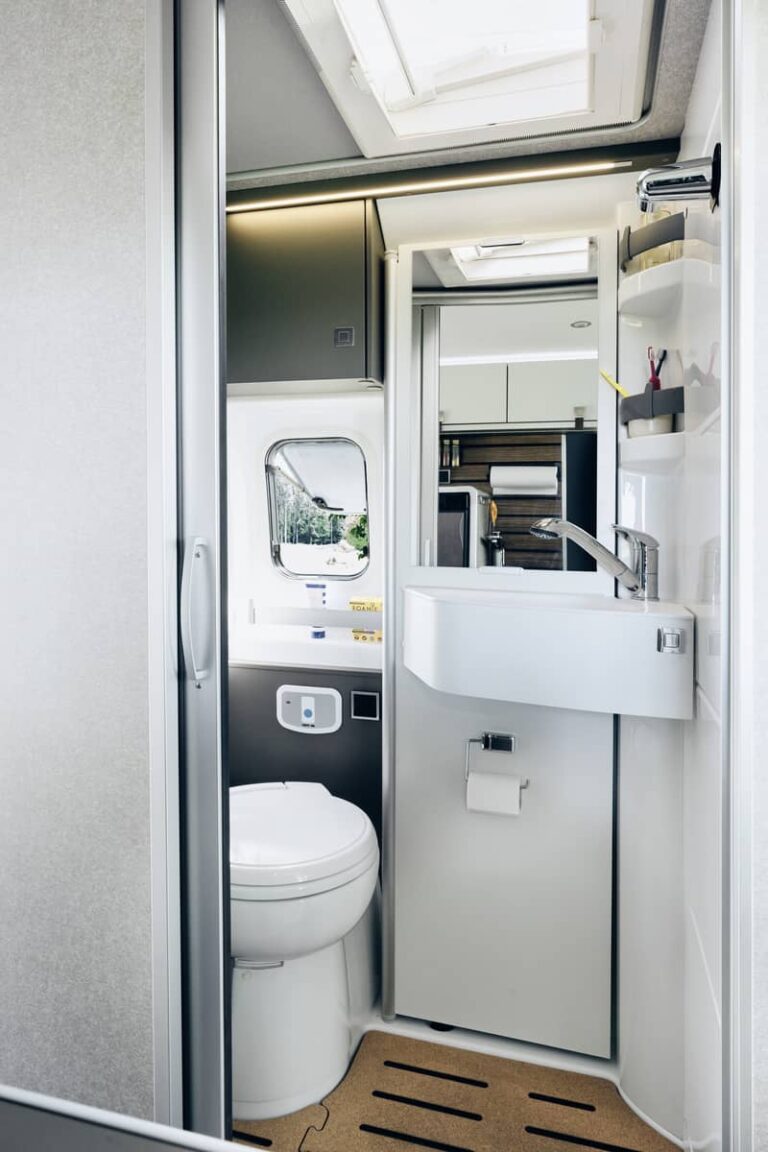

Bathroom

• Replacement bathroom with swing wall
• Shower head holder with suction cup
• Shower tray with round duct
• Cassette toilet with level indicator

Installation and technology

• 6 kW gas-fired warm air heating with 10 l hot water boiler
• 7-inch touchscreen for convenient control and monitoring of smart car functions
• "HYMER Connect for controlling and monitoring smart car functions using the HYMER Connect app.
• Internal temperature sensor
• Heating LCD keypad
• Patented insulated underfloor battery tray with 95 Ah residential battery
• Charging booster for safe charging of a residential battery while driving (up to 70 A)
• 230 V external connector with earthing switch 230 V and 12 V
• 110 l fresh water tank (underfloor) with service cover on the walk-in floor
• 95 l waste water tank (underfloor)
• Fresh and waste water tank, insulated and heated
• Fresh water and waste water tank level indicator
• Electric wastewater discharge
• Heat conduction concept at the back of the bed for optimal heat distribution

Fabrics and upholstery

• Furniture finish: Ivy Green
• Fabric combination: Indiana

Packaging

• Standard equipment
